[Complete] A failed Luthier's Debut... From bin to life?

LittleBlue

Firstly, thanks to all the help and support for my first project of this nature. It was completed and now up for sale.

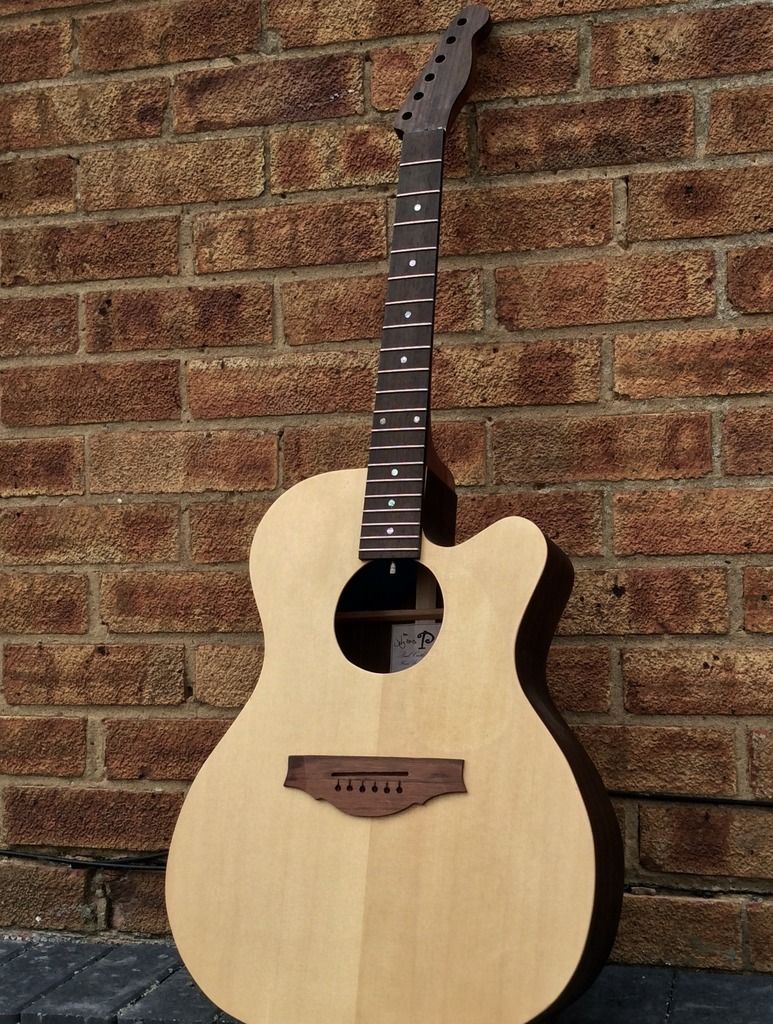

Secondly, a big thanks to Steve Robinson for digging this out for me. The guitar in question is a Paul Cathcart. I think the only one he made.

http://i301.photobucket.com/albums/nn53/parkerska/Paul Cathcart 001 into Temple Mandolin 002/C27D081B-FE4A-4278-B5E5-FE02A0C11421.jpg

This is a challenge, due to the poor top. When removing it from the sides two large splits appeared, to join the original splits that were already in the top. Having never repaired splits, I'm Not sure how hopeful I am of repairing them, but they are currently clamped up and supported by a spare section of top. Maybe I'll stick to my saw instead of the household iron in future, but the top seemed incredibly dry to begin with anyway. So bring the upcycle project on. Temple Mandolin 002.

melvynhiscock

Show me a guitar maker that has never made a MASSIVE mistake and I will laugh myself senseless.

Think around the problems and try and move forwards. If that fails then join the rest of us with good stories to tell!

LittleBlue

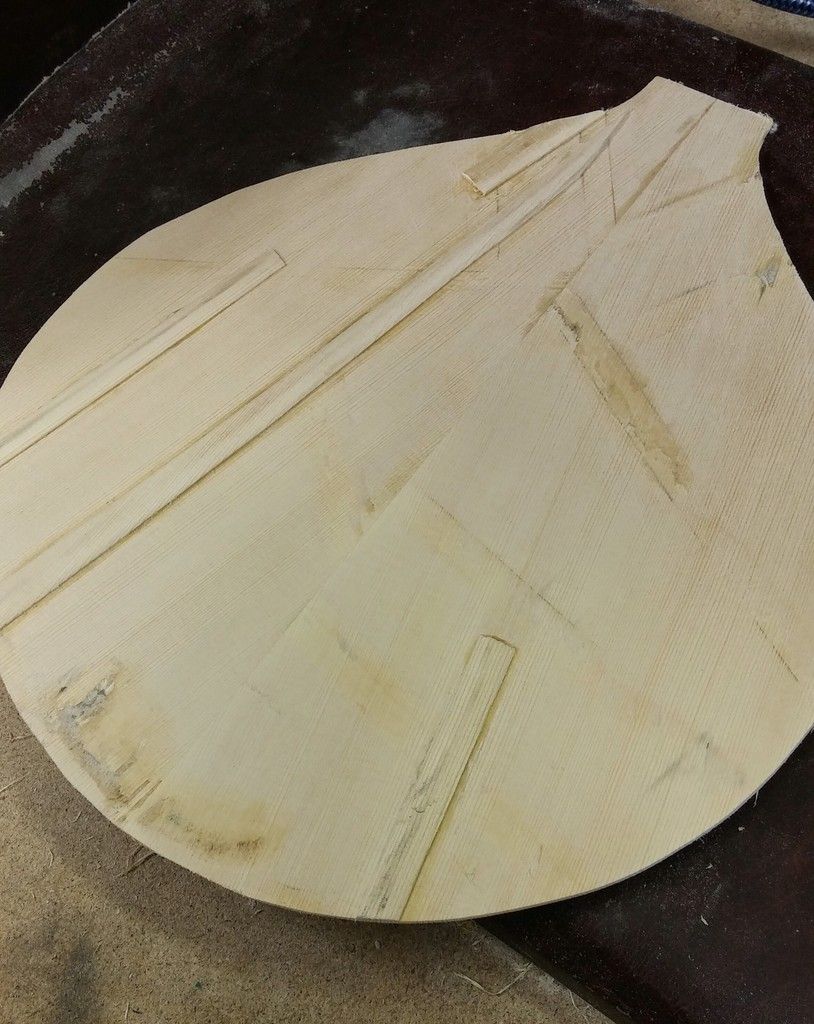

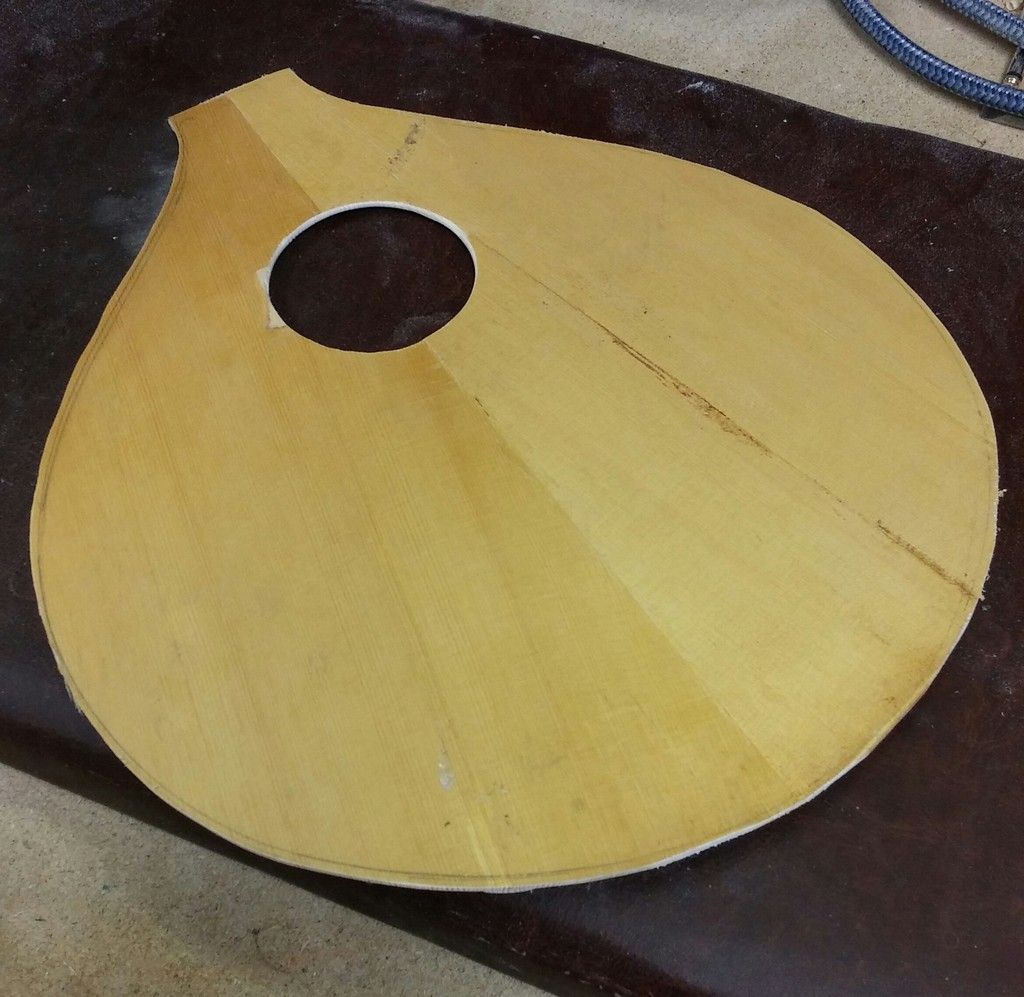

I've made some repairs to the cracks in the top. It will be interesting to see whether they hold when all is together. http://i301.photobucket.com/albums/nn53/parkerska/Paul Cathcart 001 into Temple Mandolin 002/20150928_1340092.jpg http://i301.photobucket.com/albums/nn53/parkerska/Paul Cathcart 001 into Temple Mandolin 002/20150928_1653392.jpg

SteveRobinson

Did you get any further with this?

The guy who originally commissioned it and gave it to me was here today.

LittleBlue

SteveRobinson said:

Did you get any further with this?

The guy who originally commissioned it and gave it to me was here today.

Hi Steve. Sorry, I've been off here quite a while and had bits of time here and there to work on this. I'll upload the next lot of photos, buts it's just ready to start finishing!

SteveRobinson

That's brilliant, I thought it was a no-hoper!

LittleBlue

So progress pics on this one: https://www.dropbox.com/s/3giczndreioeapy/TM2-2.jpg?raw=1 https://www.dropbox.com/s/mtw3z2n5pesbbwt/TM2-3.jpg?raw=1 https://www.dropbox.com/s/c4f04tc17r7q9bs/TM2-1.jpg?raw=1 https://www.dropbox.com/s/34ns91q3m8n4pi2/TM2-4.jpg?raw=1 https://www.dropbox.com/s/j2gszb8m52jxqwb/TM2-6.jpg?raw=1

SteveRobinson

Looks fantastic, you made a new neck?

LittleBlue

SteveRobinson said:

Looks fantastic, you made a new neck?

I've actually used the same neck. Removed the fretboard and truss rod, cut the neck to size, rejoined the headstock and re-cut the truss rod channel. With these Upcycles, I'm using a simple bolt on system that is proving to be very effective.

LittleBlue

This mandolin is now finished! I will post photos sometime tomorrow hopefully!

SteveRobinson

Looking forward to it!

Gassage

LittleBlue said:

So progress pics on this one: https://www.dropbox.com/s/3giczndreioeapy/TM2-2.jpg?raw=1 https://www.dropbox.com/s/mtw3z2n5pesbbwt/TM2-3.jpg?raw=1 https://www.dropbox.com/s/c4f04tc17r7q9bs/TM2-1.jpg?raw=1 https://www.dropbox.com/s/34ns91q3m8n4pi2/TM2-4.jpg?raw=1 https://www.dropbox.com/s/j2gszb8m52jxqwb/TM2-6.jpg?raw=1

Pre-lawsuit headstock model too

LittleBlue

I guess i can direct Fender back to the original guitar maker ;-)

LittleBlue

Upcycled from the guitar in the first photograph, it has a repaired solid spruce top, solid rosewood back and sides and, what i perceive to be, an ovankol fretboard. Mahogany neck and half rosewood, half mahogany bridge. The only part not made from the original guitar was the mahogany half of the bridge, and the hardware (incl. bone nut and saddle)

https://www.dropbox.com/s/8pj0u98pzzxm2tp/002 original.jpg?raw=1

https://www.dropbox.com/s/4roa0w1p993351z/Temple Model 002.jpg?raw=1

https://www.dropbox.com/s/8f0cbc44o66sp9c/002 Back View.jpg?raw=1

https://www.dropbox.com/s/b59gxnlrq88xrmg/002 Top.jpg?raw=1

https://www.dropbox.com/s/gvixs6v5s8y9am5/002 Back.jpg?raw=1

https://www.dropbox.com/s/0ejfb990x42qhe5/002 Headstock.jpg?raw=1

https://www.dropbox.com/s/7xij0com5ioxzug/002 HS back.jpg?raw=1

https://www.dropbox.com/s/ukxsozt3c5e2npt/002 Fretboard.jpg?raw=1

https://www.dropbox.com/s/2yikfeysp2ae6e8/002 Bridge.jpg?raw=1

SteveRobinson

Lovely job!

LittleBlue

SteveRobinson said:

Lovely job!

Thanks Steve. And thank you for supplying the original guitar!

BigMonka

That's an incredible transformation, amazing skills there :-)
